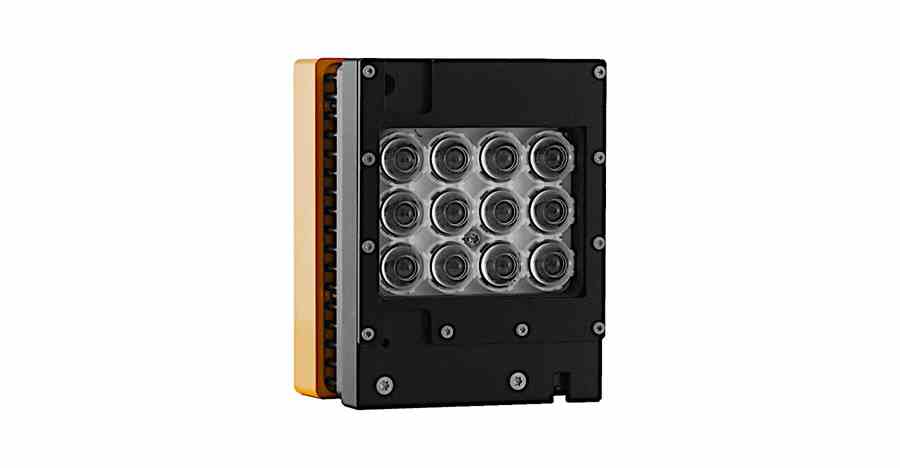

MultiLED QX
MULTILED QX
The MultiLED QX is a standalone 12,000 lumen lamp head for continuous operation. This GEN4 lamp replaces the MultiLED QT.
-
Preinstalled lens (horizontal x vertical): 12°x12°
-
Additional lenses (horizontal x vertical): 25°x25° - 40°x40° - 60°x60° - 30°x13° - 60°x12°
-
12000 Lumen
-
Standard desktop power supply with 5 m cable included
-
White light (look at CT model for colour LED)
-
150W 48V
-
Continuous operation
-
Bottom 1/4-inch standard thread for photographic accessories and mount
-
Status LED
-
Uses MULTILED GEN4 System cable
With the optional MultiLed GX8 or GX8 Touch controller†† connected, you can access advanced functionality:
-
Down to 200 nanoseconds strobe length at full output power
-
Pulse delay: 220 ns
-
Pulse rise time: 100 ns
-
Pulse fall time: 350 ns
-
Shortest usable pulse width: 200 ns
-
Adjustable intensity for each channel: 0% to 100%
-
Temperature and status display for each lamp head
-
All communications and power supply come from the GX8 through 1 MultiLED GEN4 System X cable
