MultiLED QX Mini

MULTILED QX Mini

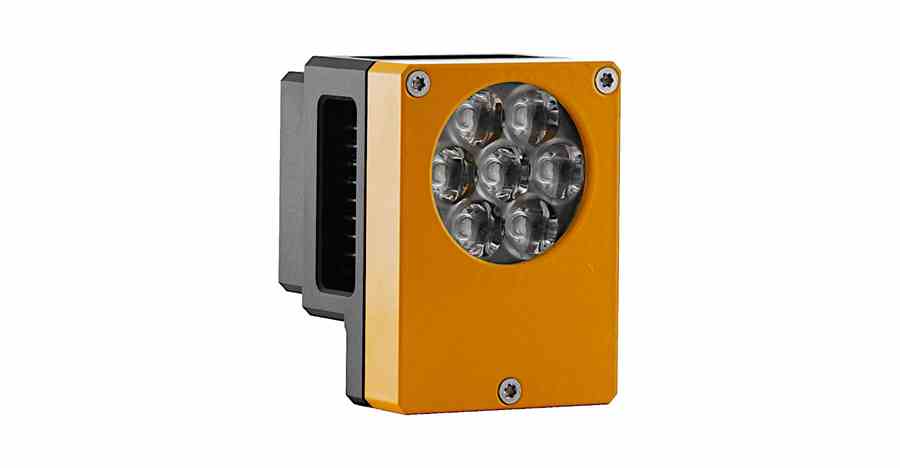

The MultiLED QX Mini is a standalone 7,000 lumen lamp head for continuous operation. It is quarter the size of an LT and has 85% of its light output.

• 7000 Lumen

• 7 LEDs, 70 Watts, 48V

• Also available with warm white and blue LEDs.¹

• Continuous light

• Environmental protection: as IP20, fan inside

• Bottom 1/4-inch standard thread for photographic accessories and mount

• Standard lenses: 22° FWHM

• Optional lenses: 27°, 41° FWHM

• Connect up to 8 units to a single power supply using the GX8 controller

• Basic power supply with 5 m cable included. Uses standard Ethernet CAT6 S/FTP cable 1:1

With the optional MultiLed GX8 or GX8 Touch controller² connected, you can access advanced functionality:

• Down to 200 nanoseconds strobe length at full output power

• Pulse delay: 220 ns

• Pulse rise time: 100 ns

• Pulse fall time: 350 ns

• Shortest usable pulse width: 200 ns

• Adjustable intensity for each channel: 0% to 100%

• Temperature and status display for each lamp head

• All communications and power supply come from the GX8 through 1 MultiLED GEN4 System X cable

¹Alternative colours and outputs:

Colour	Wavelength	Output
95 CRI White	Warm white	3,850 Flux (lm)
Blue	440 - 460 nm	27,000 Flux (mW)

² Power and control up to eight MX from one GX8 controller.

MultiLED Lamp Head Index: LX - MX- QX - QX Mini - LT - PT - ZX - L180-XF - L48-XF - CG8 - R100/R200 - G-S8
