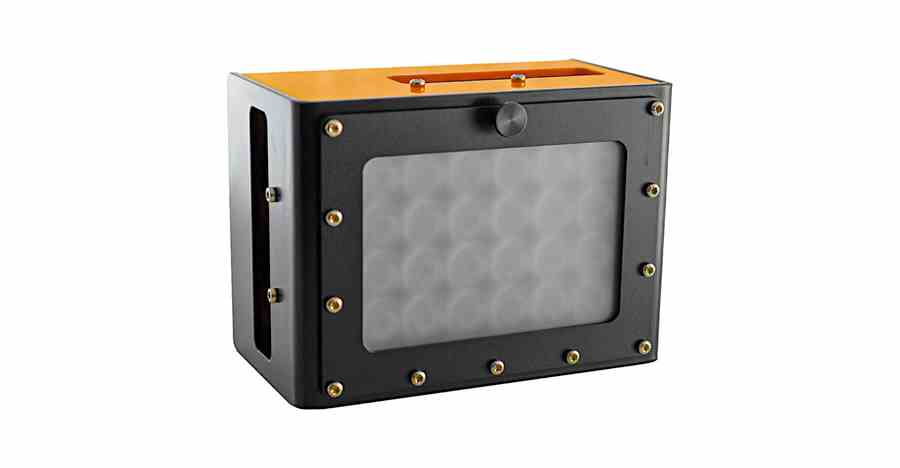

MultiLED LT

MULTILED LT (2021 model)

The MultiLED LT is a standalone 14,000 lumen lamp head for continuous operation. With 24 high power LED, small size, and low heat radiation, it has a long lifetime (50,000 hours plus).

• 24 High power LEDs, 135 Watt, 24 Volt (14,000 Lumen total)

• Colour LED options available^†

• Robust and highly available XLR jack

• Internal fan

• Environmental protection: as IP20

• Bottom 1/4“ standard thread for photographic accessories and mount

• Lenses: standard 12° FWHM

• Dimensions: 146*106*84 mm

• Power supply and 5m XLR cable included.

• Option: longer cables or other cable types on request.

^† Available colours and outputs:

Colour	Wavelength	Output
95 CRI White	Warm white	11,000 lm
Light Blue	460 - 480 nm	49,200 Flux (mW)
Green	520 - 540 nm	18,500 Flux (mW)
Red	615 - 630 nm	22,000 Flux (mW)
Far Red	710 - 750 nm	33,000 Flux (mW)
NiR 810 nm	~ 810 nm	48,500 Flux (mW)
NiR 850 nm	~589 nm	54,800 Flux (mW)
NiR 940 nm	~940 nm	49,300 Flux (mW)
