MULTILED G-S8

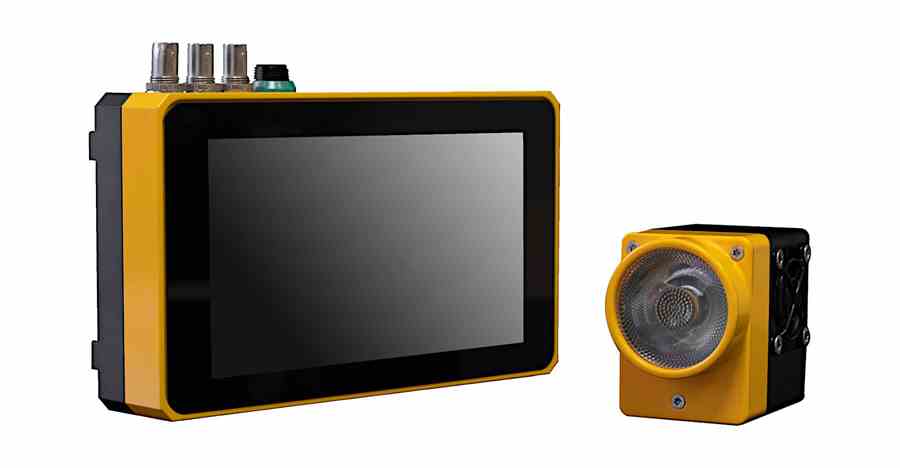

The MultiLED G-S8 is the ultimate LED solution for high speed camera macro applications, period.

• Up to 120 million Lux in the focus point with 8 heads (depending on LED colour^† and working distance).

• Depending on camera sensitivity, closed aperture at below 1 microsecond exposure can be achieved.

• Touchscreen controller for configuration.

• Position up to 8 „S3/xf LED heads“ freely around your application.

• Active cooling , 5% duty cycle continuously (white LED), 10% (colour LED).

• BNC, TTL, pulse width controlled up to 1.4 MHz.

• Option on request: 1 several hundred microseconds pulse for ultra highspeed cameras up to 10 fps.



^† Available colours and outputs:

Colour	Wavelength
White	White
Royal Blue	458 nm
Blue	475 nm
Green	528 nm
Amber	595 nm
Red Orange	615 nm
Red	625 nm
Photo Red	660 nm
Far Red	730 nm

MultiLED Lamp Head Index: LX - MX- QX - QX Mini - LT - PT - ZX - L180-XF - L48-XF - CG8 - R100/R200 - G-S8
