MultiLED L7-XF - Discontinued

MultiLED L7-XF - Professional LED lighting for High Speed Photography

MULTILED L7-XF - Discontinued

Please take a look at our current range of high performance LED lighting.

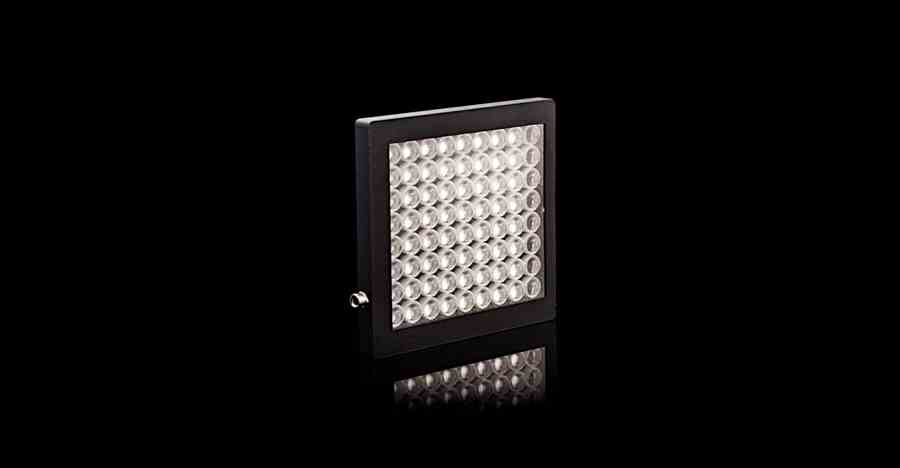

The MultiLED L7-XF is a 75,000 lumen (150,000 in overdrive) LED panel for pulsed operation. at low duty cycle only. With 6 kW output, e.g. at 1 kHz and 1 μs exposure time only 6 W are used.

  • Power consumption limited to 40 W.

  • Flat design (10 mm).

  • White LED only.

  • Very homogenous illumination.

  • 15°, 30°, 50°, 60° or 115° FWHM lenses available.

  • Pulsed by TTL pulse duration.

  • Power supply 60 W with 5 m cable with M8 connector included.


Options:

  • Longer cables or other cable types on request.

  • LiPo Battery pack on request.

  • IP67 housing optional.

  • High-G housing optional (100G)



For further information please contact a member of the team at Photo-Sonics International Ltd.
