MultiLED IT - Discontinued
MULTILED IT - Discontinued
Please take a look at our current range of high performance LED lighting.

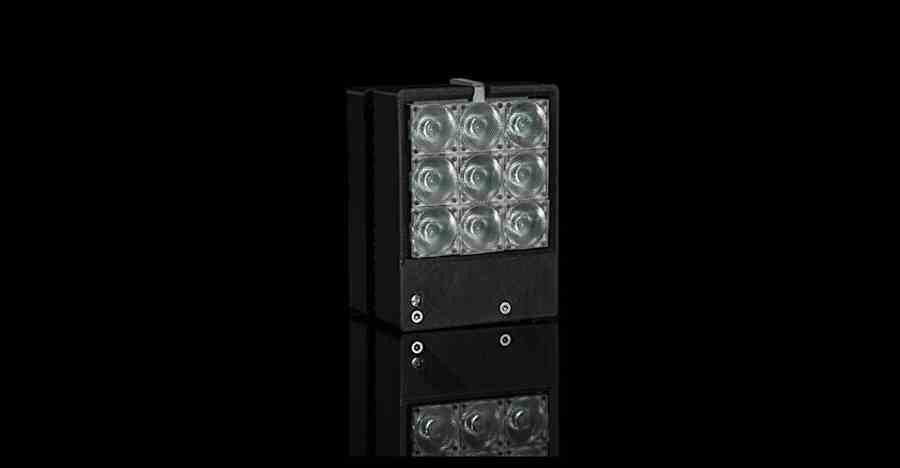

The MultiLED IT is a standalone lamp head for continuous operation.
-
Easily exchangeable lens available: 15°, 25°, 45°, 75°
-
IR or UV LED†
-
Continuous or pulsed operation
-
Bottom and top 1/4-inch standard thread for photographic accessories and mount
With the optional MultiLed G8 controller connected, you can access further advanced functionality:
-
Down to 200 nanoseconds strobe length at full output power
-
Pulse delay: 220 ns
-
Pulse rise time: 100 ns
-
Pulse fall time: 350 ns
-
Shortest usable pulse width: 200 ns
-
Adjustable intensity for each channel: 0% to 100%
-
Temperature and status display for each lamp head
-
All communications and trigger come from the G8 Controller through 1 Ethernet cable
† Available colours and outputs:
Colour | Wavelength | Output |
UV | 365 nm | 15,120 Flux (mW) |
UV | 385 nm | 20,000 Flux (mW) |
UV | 395 nm | 20,000 Flux (mW) |
UV | 405 nm | 20,000 Flux (mW) |
IR | 850 nm | 12,150 Flux (mW) |
IR | 940 nm | 12,150 Flux (mW) |
For further information please contact a member of the team at Photo-Sonics International Ltd.
