Phantom Miro C321 Air
Introduction:
Since 1950, Vision Research has been designing, and manufacturing high-speed cameras. Their single focus is to invent, build, and support the most advanced cameras possible.
Their Phantom Miro C321 Air High Speed Camera offers high quality, HD imaging in an extremely rugged body needed for harsh airborne test applications.
The C321 AIR leverages years of rugged application use in auto crash testing, where every test is critical. it's designed to withstand harsh environments and repeatedly deliver high quality images.
Key Specifications:
-
19.2 x 10.8 mm CMOS Sensor, 10µm pixel size, 22.03 mm diagonal.
-
Maximum 1920 x 1080 resolution at 1480 fps.
-
Frame rates increase to over 94,000 fps at reduced resolutions.
-
1 µs minimum exposure.
-
C Mount for your choice of lens, 4/3" format required for optimal imaging.
-
16 GB of RAM memory, CFast capability, memory partitioning and autosave allow multiple shots to be securely stored.
-
4.2 second recording time at maximum frame rate of 1480 fps, increasing to 12 second recording time at 500 fps, at highest resolution to 16 GB RAM.
-
Wide range of triggering and synchronization options.
-
Gb Ethernet compatible for control and data.
-
Programmable I/O to configure signals, as well as many other standard Phantom Features for flexible test capabilities.
-
Aircraft power; 16 to 36 VDC, 14 W.
-
Small size and weight; 73 x 73 x 106.7 mm H x W x D, 0.64 Kg without lens.
-
-55°C to +50°C operational temperature for aerospace needs.
-
Design to meet to MIL-STD 810H, 704, and 461 test standards.

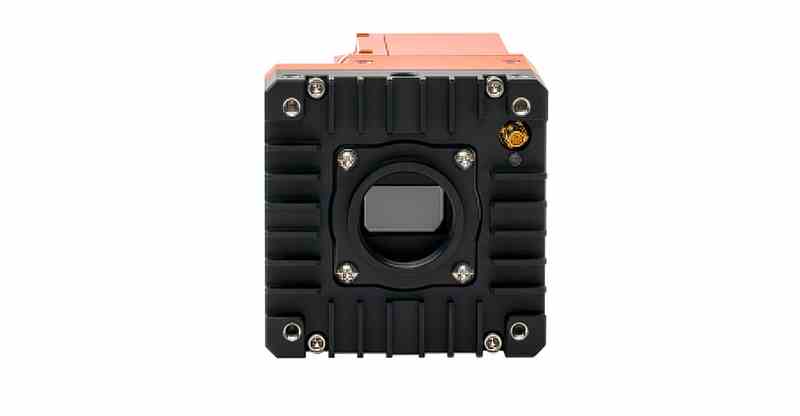

Miro C321 Air, front facing without lens

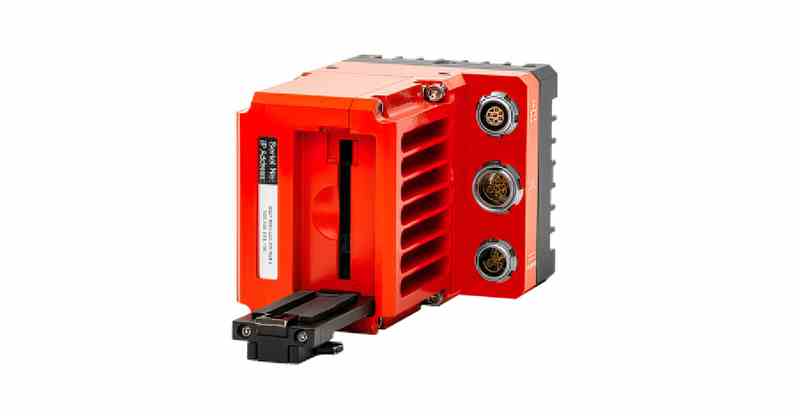

Miro C321 Air, rear facing CFast latch open

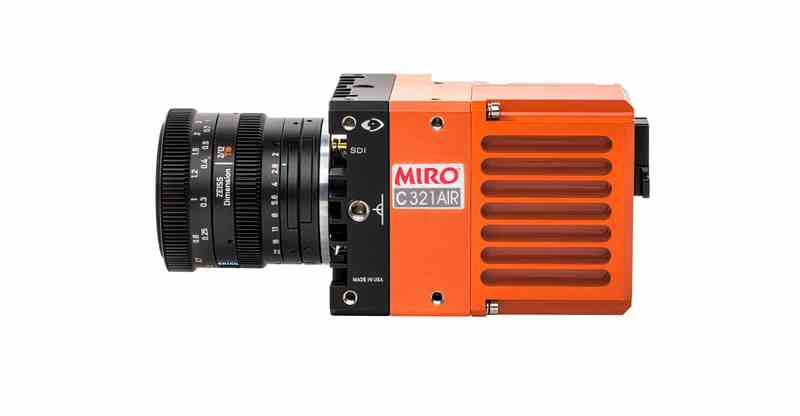

Miro C321 Air, side facing with lens
For more technical details, contact a member of the team at Photo-Sonics International Ltd.
